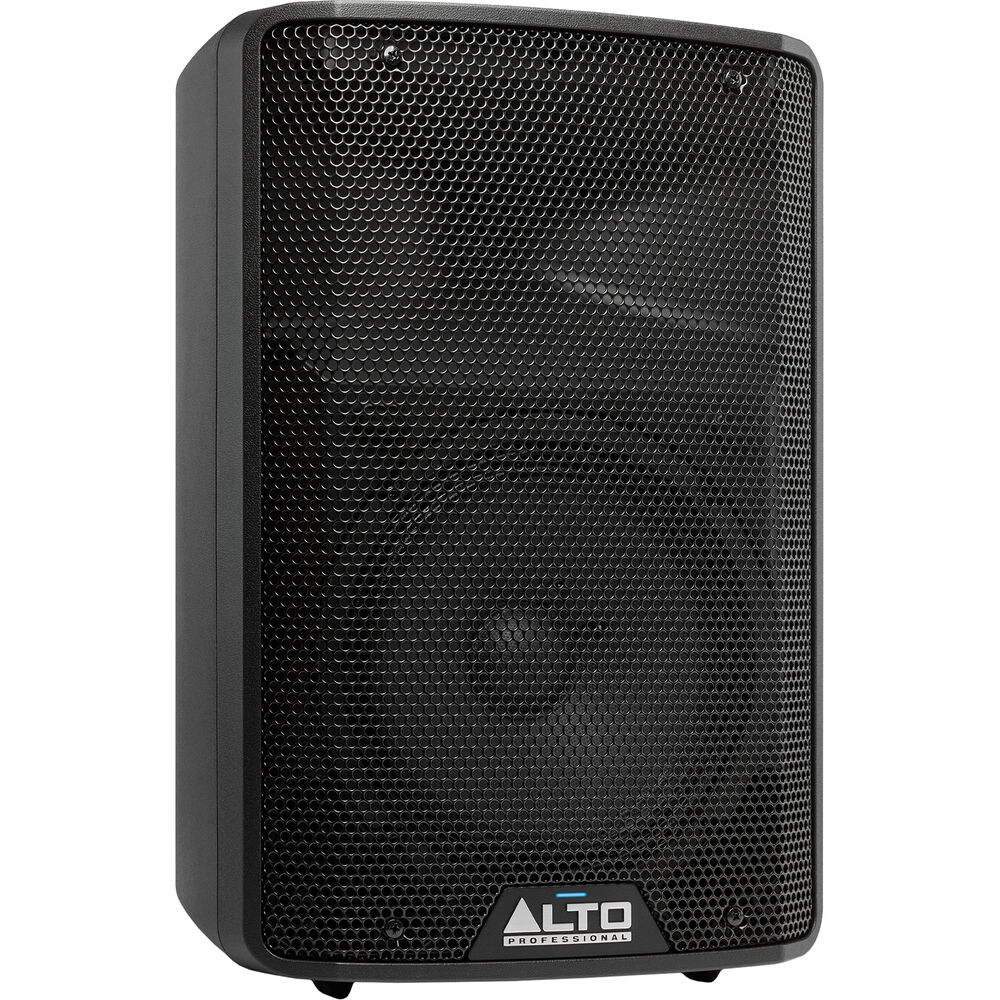

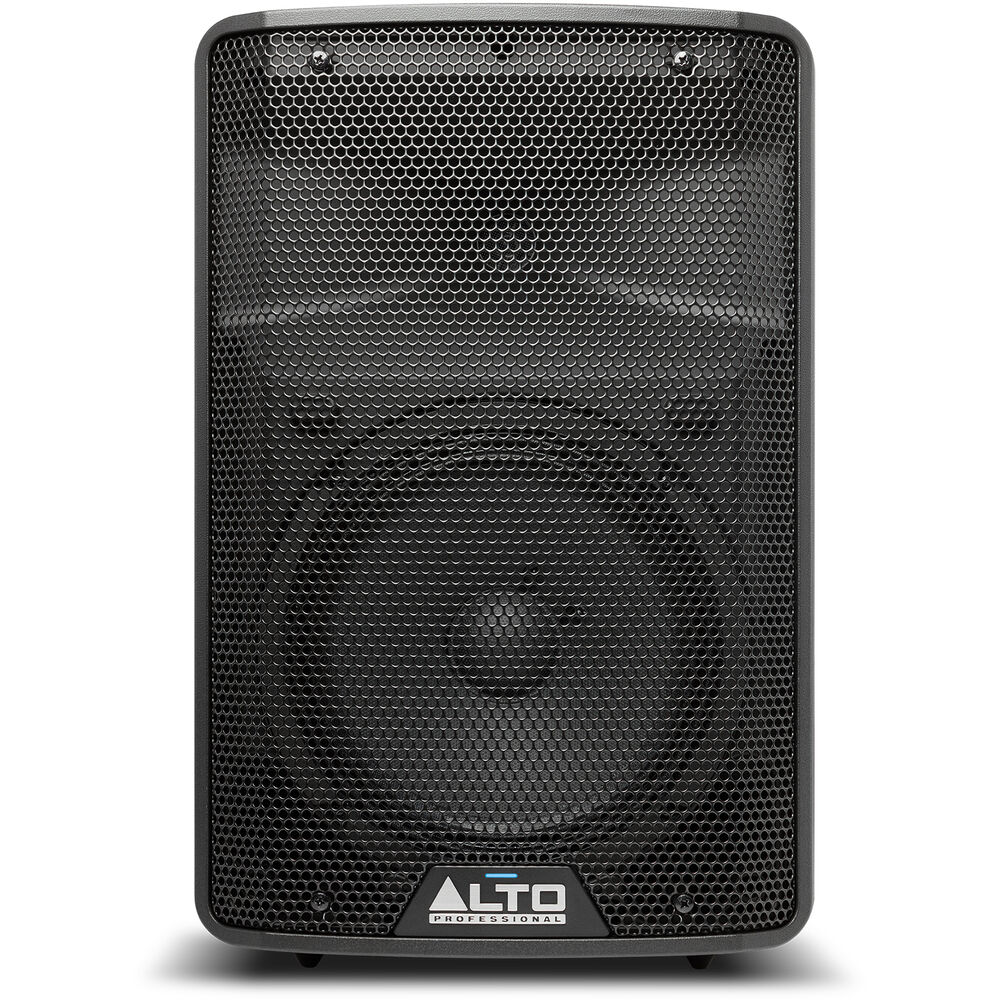

Alto TX208 300 Watt 8 Inch 2 Way Active PA Speaker

Description

Alto TX208 300 Watt 8 Inch 2 Way Active PA Speaker Overview:

There are four models in the range—the 300-watt TX208 and 210, and the 600-watt TX212 and TX215. They are all bi-amplified 2-way designs, with a long-excursion woofer and a 1-inch titanium compression driver in a newly-designed precision horn. This new horn design improves the high-frequency performance and produces a very precise 90˚H X 60˚V radiation pattern—ideal for optimal audience coverage.

The TX2 Series features a new ID, resulting in rugged, lightweight, easily-transportable cabinets. Their trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that their full complement of inputs/outputs and mounting options and it’s easy to see that the TX2 Series plays an indispensable role in your performance.

Features:

• 300 Watts peak, (150 Watts continuous Class D power)
• The newly designed horn delivers greater coverage 90° H x 60° V
• The full grille delivers style and provides protection for your investment.
• 8-inch (203 mm) LF driver, 1.5-inch (38.1 mm) voice coil
• 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analog limiter and overload protection circuitry
• Designed and tuned in the USA

Specifications:

• Power Output: 300 W peak (200 W LF + 100 W HF), 150 W continuous (100 W LF + 50 W HF) Class D power
• LF Driver: 8-inch (203 mm) LF driver, 1.5-inch (38.1 mm) voice coil
• HF Driver: 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Crossover: 2.5 kHz
• Maximum: 113 dB at 1m
• Frequency Response: (-3dB): 75 Hz – 20 kHz
• Horn Coverage: 90° H x 60° V nominal
• Connectors: (1) XLR balanced input, (1) XLR link output, (1) IEC power cable input
• Controls: (1) Volume, Power on/off switch
• Indicators: (2) Power LED (front and rear), Clip limiter LED
• Protection: Overload Analog Limiter / Compressor, Thermal Protection
• Power Supply: 100V-240V ~ 50/60Hz
• AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
• Fuse: 100–120V T1.6AL AC250V, 220–240V T800mAL AC250V
• Power Consumption: 150 W
• Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
• Mounting/Installation: Standard speaker pole socket, Wedge Monitor
• Dimensions (H x W x D): 16.6" x 10.7 x 9.9" / 422mm x 272mm x 252mm
• Net Weight: 13.9 lbs. / 6.3 kg.
