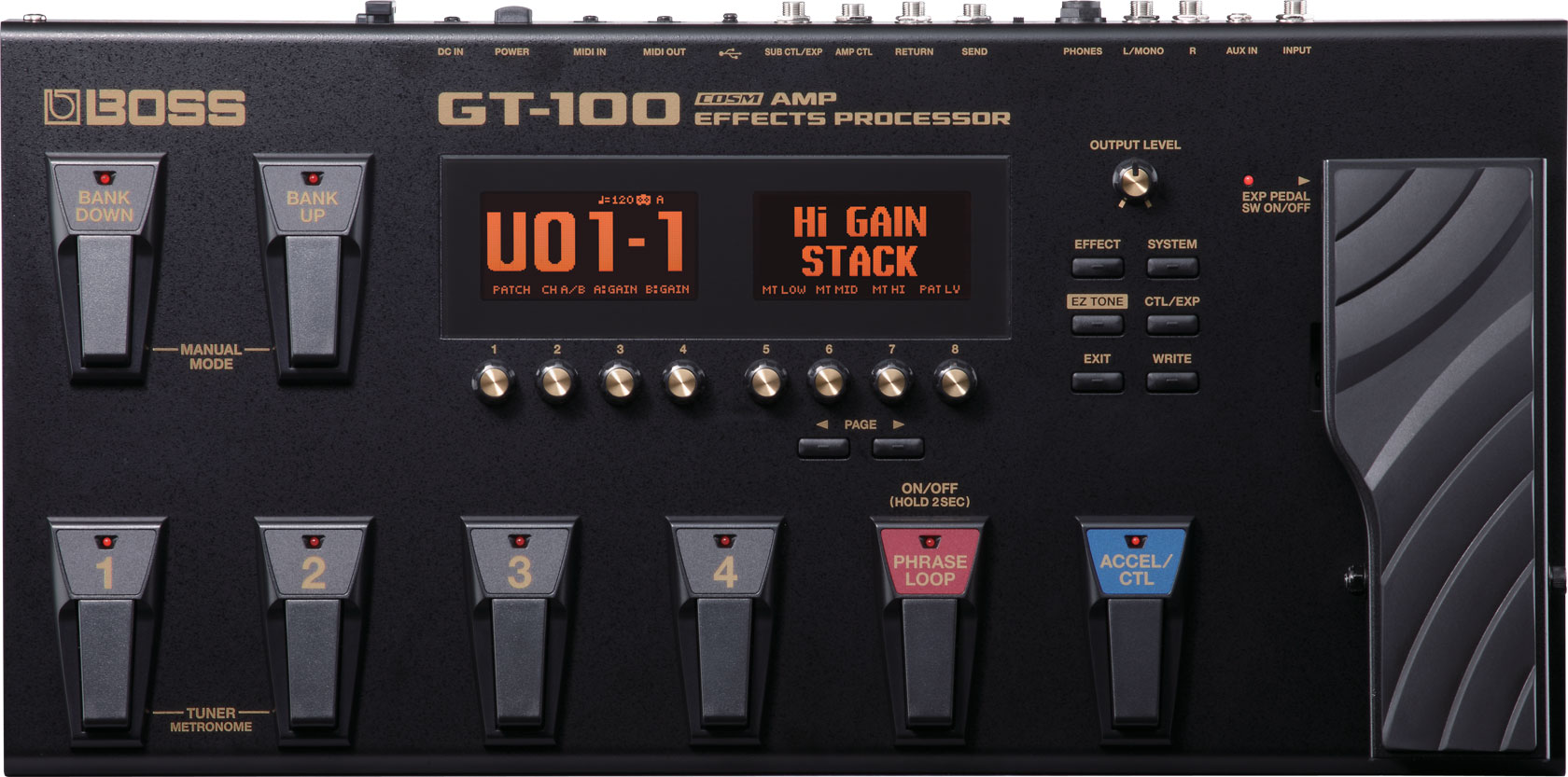

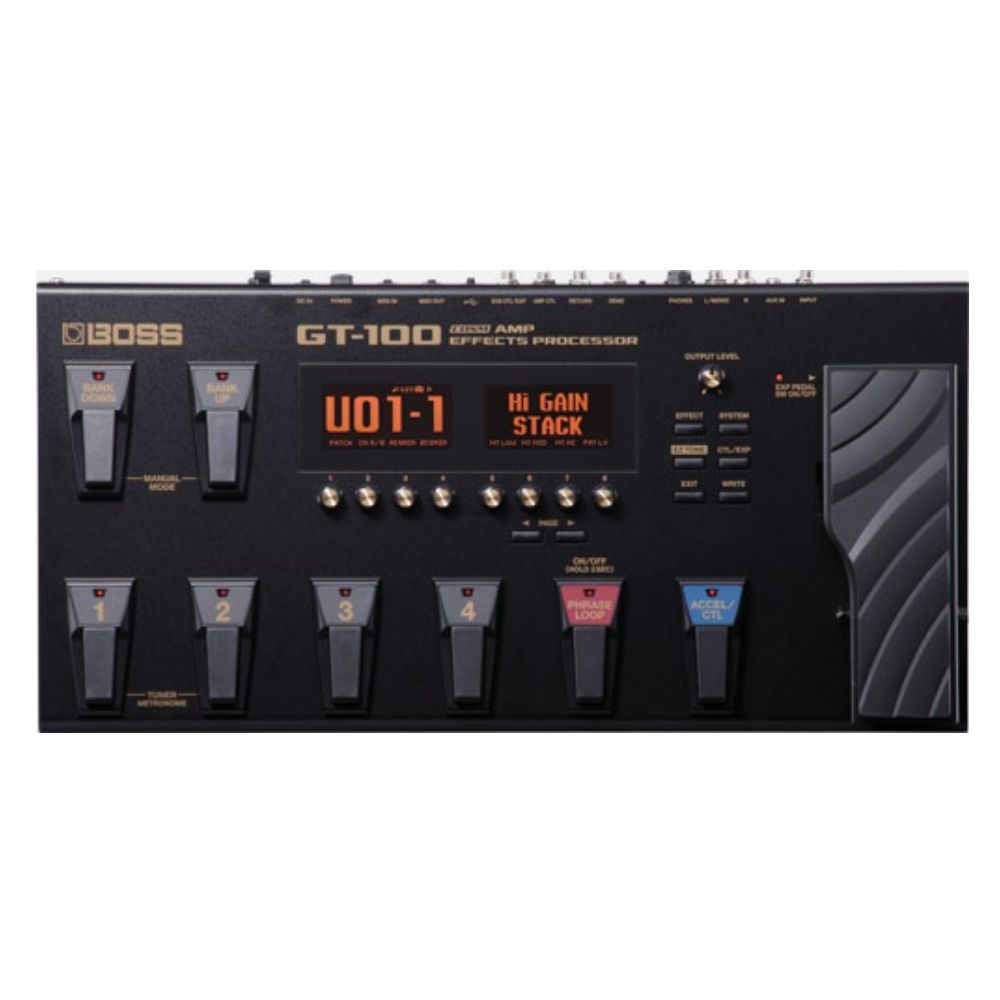

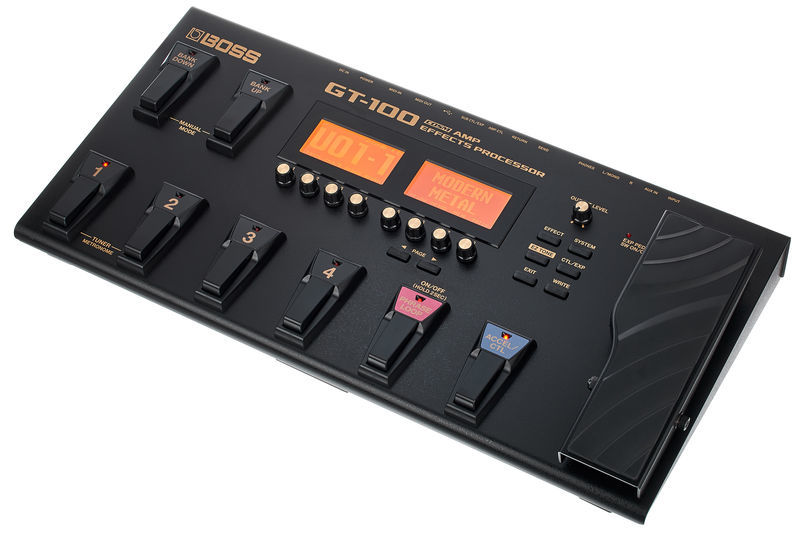

Boss GT-100 Multi-effects Guitar Processor

Description

Boss GT-100 Features:

• Versatile COSM amps that model vintage amp tones and deliver exceptional tones
• Dual-LCD for simple and spontaneous operation with direct access to every parameter
• Construct new patches with the Improved EZ Tone feature that comes with graphical Tone Grid
• Amp Customize and OD/DS Customize offers easy creation of original amps and overdrive/distortion
• Newly developed Accel pedal allows for simultaneous control of multiple parameters

Boss GT-100 Specifications:

• AD Conversion: 24 bits + AF Method(1)
• DA Conversion: 24 bits
• Sampling Frequency: 44.1kHz
• Program Memories: 400: 200 (User) + 200 (Preset)
• Nominal Input Level: INPUT: -10dBu, RETURN: -10dBu, and AUX IN: -20dBu
• Input Impedance: INPUT: 1MΩ, RETURN: 100kΩ, and AUX IN: 47kΩ
• Nominal Output Level: OUTPUT: -10dBu/+4dBu AND SEND: -10dBu
• Output Impedance: OUTPUT: 2kΩ, and SEND: 2kΩ
• Dynamic Range: 100dB or Greater (IHF-A)
• Display: Graphic LCD (132 × 64 dots, backlit LCD) × 2
• Power Supply: DC 9V
• Current Draw: 600mA
• Compatibility: Footswitch: BOSS FS-5U, Dual Footswitch: BOSS FS-6, BOSS FS-7, and EXPression Pedal: BOSS FV-500L/500H, Roland EV-5
• Accessories: AC Adaptor, USB Cap, and Owner’s Manual

Size and Weight:

• Dimensions: 21-3/8 × 10-11/16 × 3-3/16-inch (W × D × H)
• Weight: 4.8 kg

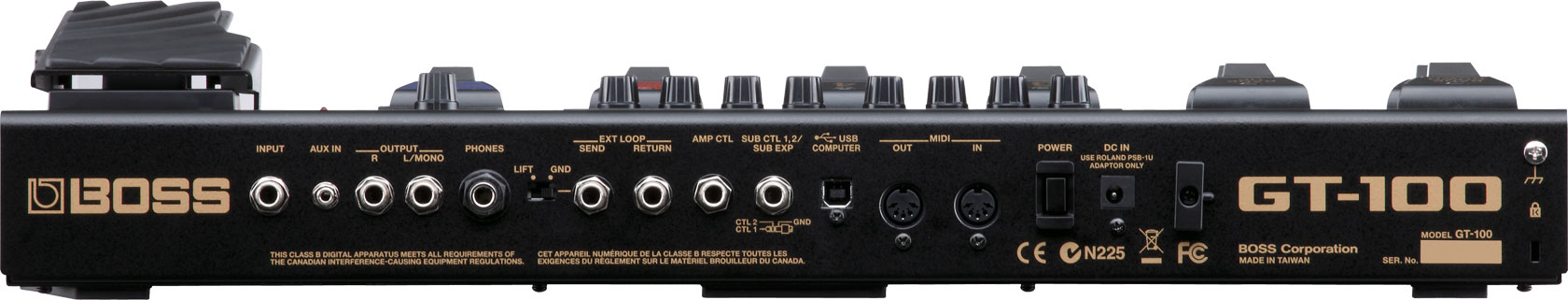

Connector:

• Guitar Jack In: 1/4-inch Phone Type
• AUX INPUT Jack: Stereo Miniature Phone Type
• OUTPUT (L/Mono, R) Jacks: 1/4-inch Phone Type
• Phone Jack: Stereo 1/4-inch Phone Type
• EXT LOOP Jacks: (SEND, RETURN; 1/4-inch Phone Type)
• AMP CONTROL Jack: 1/4-inch Phone Type
• SUB CTL1, 2/SUB EXP jack (1/4-inch TRS phone type)
• USB Port
• MIDI Connectors (IN, OUT)
• DC IN Jack

Effects Type:

• COMP
• PREAMP(1)
• OD/DS(2)
• EQ (Equalizer)
• F×1/F×2(3)
• CHORUS, REVERB, PEDAL F×
• NS1/NS2
• ACCEL F×
