• Lewitt DTP Beatkit 6

Lewitt DTP Beatkit 6

SKU: BEATKIT6
65,100
58,600
- +
Price in points: 58600
Points Earned: 586

Description

The DTP Beat Kit 6 is a conveniently packaged start-up selection of dynamic and condenser drum and percussion microphones and mounts, designed to offer performers and audio engineers of all experience levels everything needed for expert live sound reinforcement, home recording and studio recording.

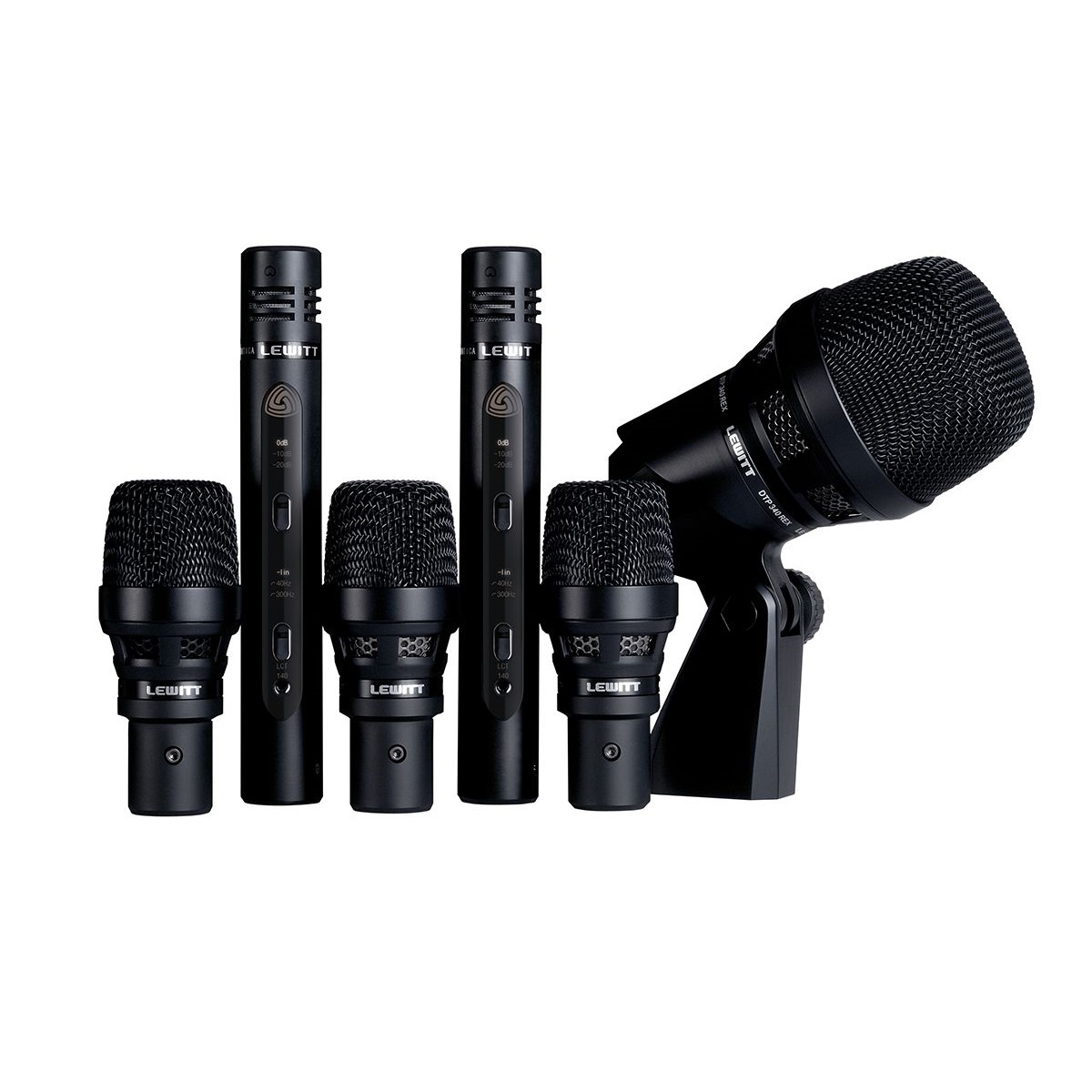

The 6-piece drum kit includes one DTP 340 REX and three DTP 340 TT super-cardioid dynamic drum mics, two LCT 140 condenser mics, windshields and drum- and shock mounting systems, and comes in a convenient black aluminium carrying case. Thanks to carefully tailored frequency responses optimized for drum and percussion applications, as well as precision dynamic capsules and uniform directional pickup patterns ensuring high gain before feedback, the DTP 340 REX and the DTP 340 TT deliver fine-tuned drum sound with extraordinary detail and impact onstage and in the studio. LEWITT’s highly versatile and compact condenser all-rounder, the LCT 140, allows for accurate and clear sound capture of cymbals. Its transformerless design makes it immune to electromagnetic interference, and convenient LED displays and recessed slide switches make it a perfect fit for live applications.

The complete kit comes in a rugged aluminium case which allows for easy travel and secure storage.

Lewitt DTP Beatkit 6 Features:

  • 6 piece starter drum kit containing one DTP 340 REX, three DTP 340 TT and two
  • LCT 140 microphones
  • All microphones feature frequency responses specifically tailored for drum and percussion instruments
  • Extremely durable gear for professional live and studio applications
  • The LCT 140 features a transformerless design which makes it immune to electromagnetic interference
  • All models are equipped with corrosion-resistant gold-plated 3-pin XLR output connectors ensuring reliable signal paths
  • Comes in a black carrying case with double foam layers and artificial leather faces for easy travel and secure storage
  • Includes two LCT 40 Ws windshields, five DTP 40 Mts shock mounts and three DTP
  • 40 Mt drum mounts



DTP 340 REX

The ambitious DTP 340 REX developed for entry-level use and its upscale big brother designed for professional use, the DTP 640 REX, make the hearts of beat aficionados beat faster. Thanks to its cardioid polar pattern and customized frequency response, the dynamic DTP 340 REX offers everything you need to mic bass instruments: catchy, impressive sound and reliable performance on stage and in the studio.

Since 2012, the DTP 340 REX offers another innovative feature. In addition to the accustomed neutral and pure sound – developed for maximum application diversity –, the ‘Enhanced Frequency Response’ switchable right on the microphone will deliver an unbeatably impressive sound by emphasizing frequencies from 70-150 Hz and 3-5 kHz – especially optimized for use on kick drums.

Specifications:

  • Acoustical operating principle: dynamic, moving coil
  • Directional pattern: super-cardioid
  • Frequency range: 40 … 16.000 Hz
  • Sensitivity: 1,4 mV / Pa (-57 dBV)
  • Rated impedance: < 500 ohms
  • Connector: gold plated 3-pin XLR
  • Dimensions: 1,6 dia. x 3,7 inch
  • Net weight: 165 g



DTP 340 TT

With the DTP 340 TT LEWITT introduces consistently high-performing wired dynamic microphones specifically designed to accurately capture the sound of drums and percussion instruments providing a maximum of acoustic presence and clarity in live sound applications.

Even in high sound pressure level applications, DTP 340 TT reproduces instrumental sounds with sonic detail and character. The super-cardioid polar pattern ensures that side and rear sounds are effectively rejected. Its rugged body and a hardened steel-mesh grille make this microphone highly durable professional gear for performers and audio engineers.

Specifications:

  • Acoustical operating principle: dynamic, moving coil
  • Directional pattern: cardioid
  • Frequency range: 20… 16.000 Hz
  • EFR, ‘Enhanced Frequency
  • Response’ settings: = FFR, ‘Flat Frequency Response’+ EFR, ‘Enhanced Frequency Response
  • Sensitivity, = FFR: 0,4 mV / Pa (-69 dBV
  • Sensitivity, + EFR: 0,4 mV / Pa (-69 dBV
  • Rated impedance: < 500 ohms
  • Connector: gold plated 3-pin XLR
  • Dimensions: 2,8 dia. x 6,2 inch
  • Net weight: 740g



LCT 140

The LCT 140 is an extremely versatile, easy-to-use, compact 2/3-inch back-electret condenser microphone, perfectly suited for quality-conscious casual users. Its low-mass diaphragm delivers an exceptionally clear and natural sound, making it the perfect fit for a wide range of live and studio applications including drums and percussion, acoustic instruments or even vocal ensembles.

Thanks to its uniform cardioid pickup pattern that effectively suppresses off-axis sound, a wide dynamic range of 124 dB and its very low self-noise, the LCT 140 adds transparency and distortion-free detail to every sound recording. Its transformerless output design makes it immune to electromagnetic interference. The LED display can optionally be switched on and off for better handling in different environments. In short, the LCT 140 is an extremely versatile all-rounder microphone.

Specifications:

  • Acoustical operating principle: pressure gradient transducer,permanently polarized
  • TransducerØ: 17mm
  • Directional pattern: cardioid
  • Frequency range: 30…20.000Hz
  • Sensitivity: 8mV/Pa(-42dBv)
  • Signal / noise ratio: 75dB-A
  • Equivalent noise level: 19 dB-A, cardioid (IEC 61672-1)
  • Dynamic range of mic. amp.: 124 dB-
  • Max. SPL for 0,5 % THD: 143 dB, 0 dB pre-attenuation, 153 dB, 10 dB pre-attenuation, 163 dB, 20 dB pre-attenuation
  • Pre-attenuation pad: 10 dB, 20 dB, switchable
  • Bass cut filter slope: 12 dB / octave at 40 Hz, 6 dB / octave at 300 Hz
  • Rated impedance: < 150 ohms
  • Rated load impedance: > 1.000 ohms
  • Supply voltage: 48 V + / – 4 V (IEC 61938)
  • Current consumption: 5,3 mA (IEC 61938)
  • Connector: gold plated 3-pin XLR
  • Dimensions: 0,94 dia. x 6,3 inch
  • Net weight: 192 g
