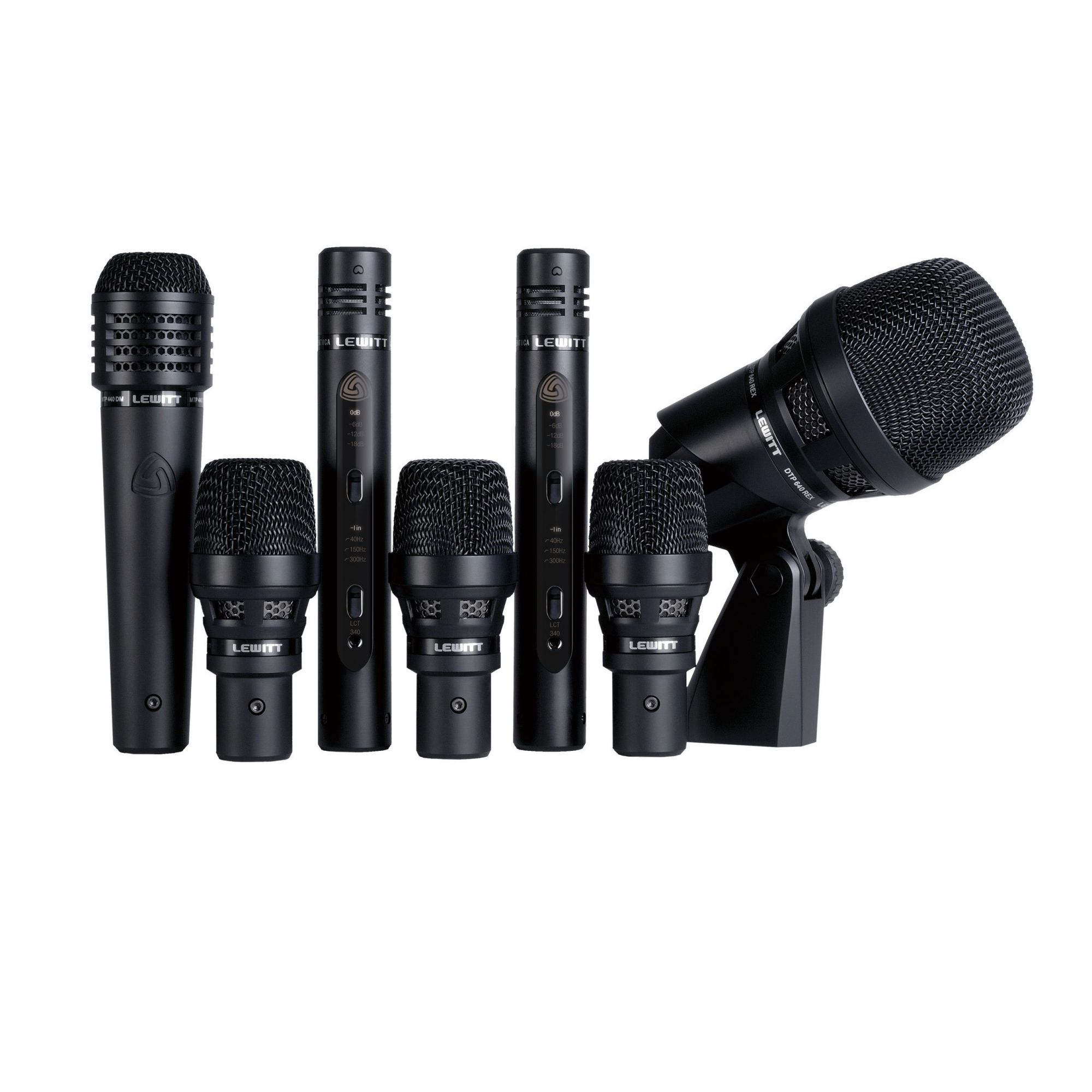

Lewitt DTP Beatkit Pro 7

Description

The DTP Beat Kit Pro 7 is an elite full-spectrum drum set designed for an ever growing number of professional drummers and sound engineers looking for a high-performance all-rounder kit that allows for reproducing authentic, powerful sound full of detail in any setting. From upscale studio projects to big live acts, the DTP Beat Kit Pro 7 provides just the kind of reliable premium gear you need for a memorable performance.

This 7-piece pro-kit contains our drum mic masterpiece, the dual-element cardioid DTP 640 REX, three dynamic DTP 340 TT mics, two LCT 340 condenser mics and one cardioid dynamic MTP 440 DM mic, as well as a selection of shock and drum mounts. All these pro-quality, precision-engineered microphones feature a tailored frequency response designed specifically for miking drums, percussions and bass instruments. The complete package exhibits fantastic SPL handling and off-axis sound rejection, delivering remarkably bright, smooth and balanced sound-anytime, anywhere.

The complete kit comes in a rugged aluminium case which allows for easy travel and secure storage.

Lewitt DTP Beatkit Pro 7 Features:

• 7-piece quality drum kit containing one DTP 640 REX, three dynamic DTP 340 TT microphones, two LCT 340 condenser microphones and one dynamic MTP 440 DM
• All microphones feature frequency responses specifically tailored for drums and percussion instruments
• Highly durable all-metal constructed bodies and hardened steel mesh grilles for reliable performance onstage and in the studio
• The LCT 340 provides interchangeable 0.8-inch small-diaphragm capsules for cardioid and omnidirectional (optional) pattern selection, convenient snap closure, transformerless output and dual-color LEDs
• The DTP 340 TT features a uniform supercardioid pickup pattern for high gain before feedback and maximum isolation of the desired sound source
• The MTP 440 DM is a cardioid dynamic microphone featuring a precision-engineered capsule for effective isolation of the intended sound source, perfectly suited for miking snare drums
• The DTP 640 REX combines a high-performance back-electret and a dynamic capsule in one mic for a highly balanced, rich and powerful drum sound
• All models are equipped with corrosion-resistant gold-plated 3-pin XLR output connectors ensuring reliable signal paths and low noise
• Comes in a black carrying case with double foam layers and artificial leather faces for easy travel and secure storage
• Includes two LCT 40 Ws windshields, five DTP 40 Mts shock mounts, four DTP 40 Mt drum mounts and one MTP 40 MCs shock mount

DTP 640 REX

Thanks to variably controlled dual element technology and fine tuned frequency responses, our flagship among drum microphones, the DTP 640 REX, offers unparalleled and powerful sound that will delight professional drummers and sound engineers alike. The DTP 640 REX is equipped with a high quality dynamic element and a condenser element – the dynamic element ensures accurate reproduction of the bass drum kick, while the condenser element optimally captures the rich low frequency sound of the drum’s shell. In order to guarantee full control over the two elements, they can be separately mixed on their own channels.

Since 2012, the DTP 640 REX offers two more features. The dynamic element emphasizes frequency ranges relevant for the kick drum in the ‘Dynamic Enhanced Frequency Response’ setting switchable right on the microphone, while the condenser element captures the sound neutrally. With ‘Dual Enhanced Frequency Response’, the character of the sound can be shaped even more individually – with this setting, the condenser element focuses on frequencies from 70 to 150 Hz and delivers a full body sound. The dynamic element provides the necessary power by focusing on the range between 3 and 5 kHz.

The combination of these features with the comprehensive tonal freedom of dual-element technology greatly increases the range of use, turning the DTP 640 REX into a universal tool for bass-heavy applications.

Specifications:

• Acoustical operating principle: dynamic, moving coil
• Condenser, permanently polarized
• Transducer Ø (dynamic): 1,25 inch
• Transducer Ø (condenser): 0,88 inch
• Directional pattern: cardioids, condenser and dynamic
• Frequency range: 20 … 16.000 Hz, dynamic, 20 … 20.000 Hz, condenser
• EFR, ‘Enhanced Frequency
• Response’ settings: = // = FFR, ‘Flat Frequency Response’, + // = Dynamic EFR, ‘Dynamic, Enhanced Frequency Response’
• + // + Dual EFR, ’Dual Enhanced Frequency Response’
• Sensitivity, = // = FFR: 0,4 mV / Pa (-69 dBV) dynamic
• 2 mV / Pa (-54 dBV) condenser
• Sensitivity, + // = Dynamic EFR: 0,4 mV / Pa (-69 dBV) dynamic, 2 mV / Pa (-54 dBV) condenser
• Sensitivity, + // + Dual EFR: condenser and dynamic matched at 1 mV / Pa (-60 dBV)
• Equivalent noise level: 28 dB-A (IEC 61672-1), condenser, FFR
• Dynamic range of mic. amp.: 122 dB-A, condenser
• Max. SPL for 0,5 % THD: 150 dB, 0 dB pre-attenuation, 160 dB, 10 dB pre-attenuation, 170 dB, 20 dB pre-attenuation
• Pre-attenuation pad: 10 dB, 20 dB, switchable
• Rated impedance: < 500 ohms, dynamic
• < 200 ohms, condenser
• Supply voltage: 48 V + / – 4 V (IEC 61938)
• Current consumption: 2 mA (IEC 61938)
• Connector: gold plated 3-pin and 5-pin XLR
• Cable: 1,5 m (4,95’) dual shielded Y-cable,
• 5-pin XLR into two 3-pin XLRs
• Dimensions: 2,8 dia. X 6,2 inch
• Net weight: 755 g

DTP 340 TT

With the DTP 340 TT LEWITT introduces consistently high-performing wired dynamic microphones specifically designed to accurately capture the sound of drums and percussion instruments providing a maximum of acoustic presence and clarity in live sound applications.

Even in high sound pressure level applications, DTP 340 TT reproduces instrumental sounds with sonic detail and character. The super-cardioid polar pattern ensures that side and rear sounds are effectively rejected. Its rugged body and a hardened steel-mesh grille make this microphone highly durable professional gear for performers and audio engineers.

Specifications:

• Acoustical operating principle: dynamic, moving coil
• Directional pattern: super-cardioid
• Frequency range: 40 … 16.000 Hz
• Sensitivity: 1,4 mV / Pa (-57 dBV)
• Rated impedance: < 500 ohms
• Connector: gold plated 3-pin XLR
• Dimensions: Ø 1,6 dia. X 3,7 inch
• Net weight: 165 g

LCT 340

LEWITT’s LCT 340 is a 0.8-inch externally polarized condenser microphone that excels at capturing acoustic and percussion instruments, drums and vocals, and is perfectly suited for sophisticated live and studio applications. Two interchangeable capsules allow for quick and easy switching of patterns, ensuring greater flexibility without changing microphones.

The LCT 340 is equipped with four-position low-cut filter and pre-attenuation slide switches, dual-color LED indicators and a convenient snap closure. It offers a dynamic range of 124 dB and stands out for its extremely low self-noise of 15 dB. Last but not least, its transformerless output makes this ruggedly designed pro-mic resistant to electrical interference and a first-class pick for true sound enthusiasts.

Specifications:

• Acoustical operating principle: pressure & pressure gradient transducers, externally polarized
• Transducer Ø: 0,8 inch
• Directional pattern: cardioid, omni
• Frequency range: 20 … 20.000 Hz
• Sensitivity: 9 mV / Pa (-41 dBV), cardioid, 8 mV / Pa (-42 dBV), omni
• Signal / noise ratio: 79 dB-A
• Equivalent noise level: 15 dB-A, cardioid (IEC 61672-1), 16 dB-A, omni (IEC 61672-1)
• Dynamic range of mic. Amp: 124 dB-A
• Max. SPL for 0,5 % THD 139 dB, 0 dB pre-attenuation, 145 dB, 6 dB pre-attenuation, 151 dB,12 dB pre-attenuation, 157 dB, 18 dB pre-attenuation
• Pre-attenuation pad: 6 dB, 12 dB, 18 dB, switchable
• Bass cut filter slope: 12 dB / octave at 40 Hz, 6 dB / octave at 150 Hz, 6 dB / octave at 300 Hz
• Rated impedance: < 150 ohms
• Rated load impedance: > 1.000 ohms
• Supply voltage: 48 V + / – 4 V (IEC 61938)
• Current consumption: 6,6 mA (IEC 61938)
• Connector: gold plated 3-pin XLR
• Dimensions: Ø 0,94 dia. X 6,3 inch
• Net weight: 200 g

MTP 440 DM

The MTP 440 DM is an exceptionally versatile, precision-engineered cardioid dynamic microphone ideally suited for upscale live sound and studio recording applications. Featuring a high-performance capsule which delivers a remarkably bright and lively sound, the MTP 440 is perfect for miking drums, percussion instruments, brasses, woodwinds, and vocals.

The MTP 440’s cardioid pattern ensures perfect off-axis rejection and exceptionally high gain before feedback. Unwanted reflections or background noise are effectively suppressed. High-quality components and rugged construction make it a number one choice for touring professionals and artists around the globe.

Specifications:

• Acoustical operating principle: dynamic, moving coil
• Directional pattern: cardioid
• Frequency range: 60 … 16.000 Hz
• Sensitivity: 2,5 mV / Pa (-52 dBV)
• Rated impedance: < 500 ohms
• Connector: gold plated 3-pin XLR
• Dimensions: 1,53 dia. x 6,25 inch
• Net weight: 280 g
