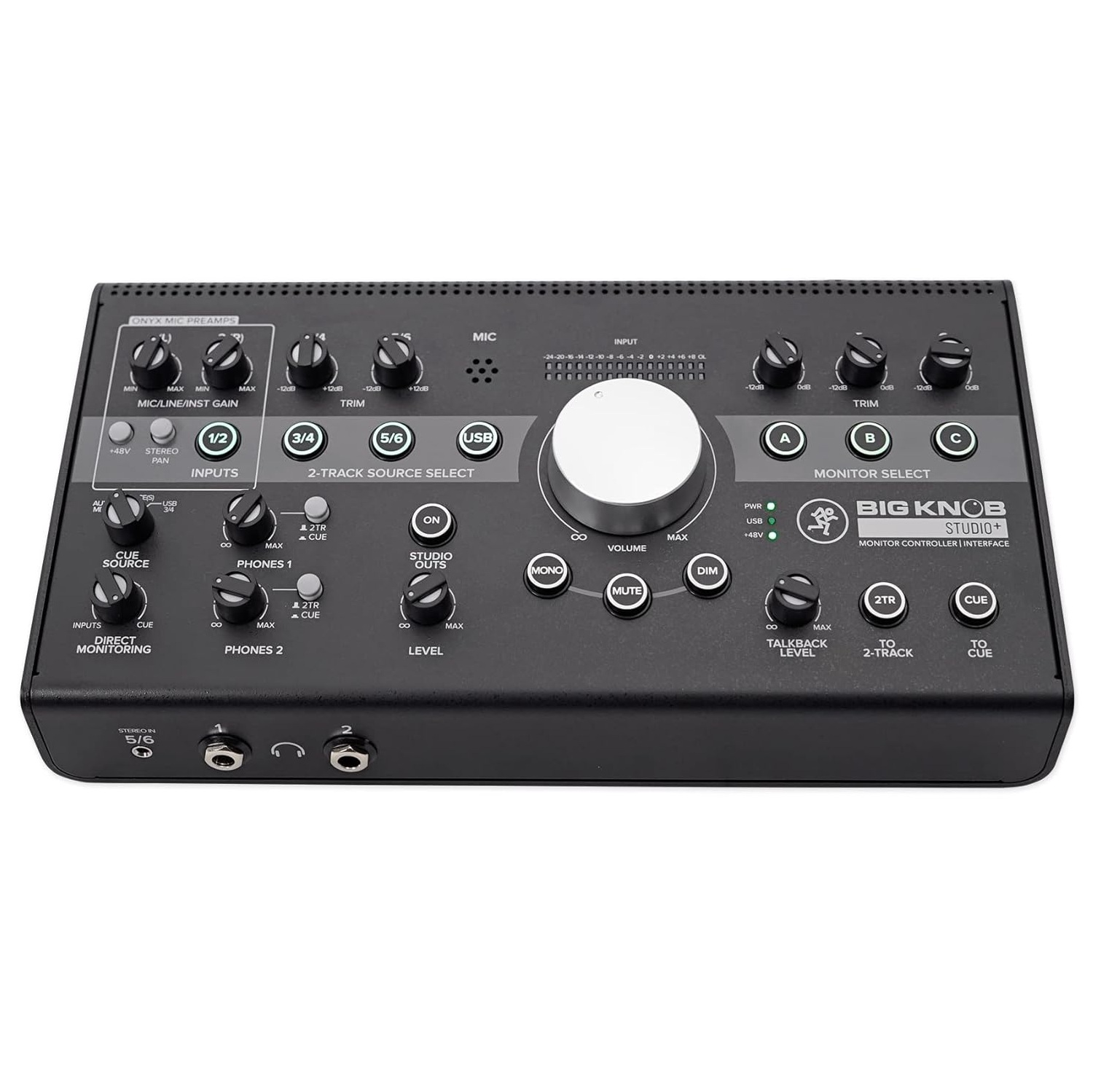

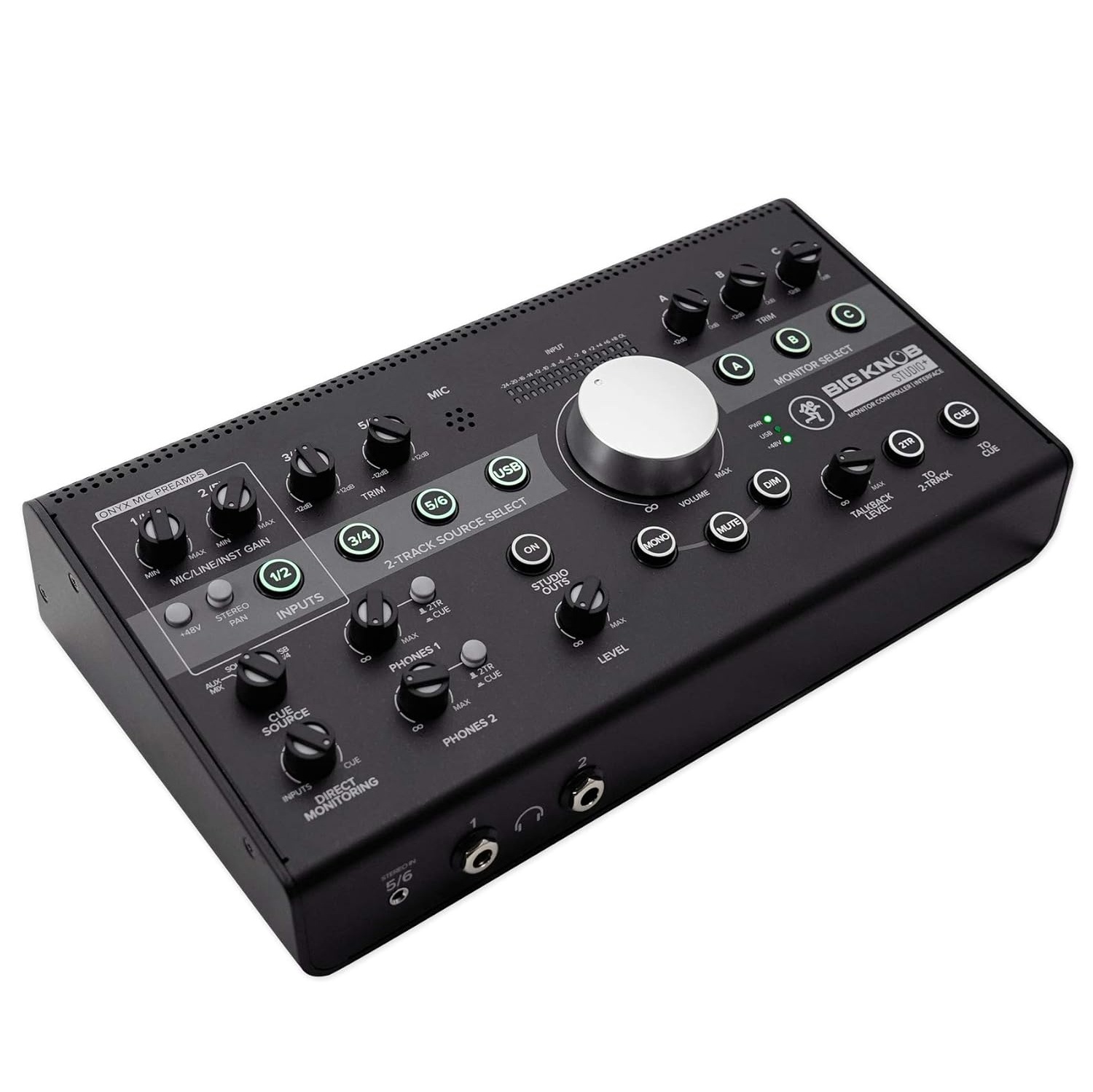

Mackie BIG KNOB STUDIO PLUS Monitor Controller Interface

Description

Mackie BIG KNOB STUDIO PLUS Monitor Controller Interface
The Mackie Big Knob Studio+ is the centerpiece in project studios, live broadcast setups, pro studios and more. With easy input and monitor switching, award-winning Onyx mic preamps, high-resolution USB recording and playback, and a dedicated amp-driven output for additional headphones, this Big Knob goes to eleven.

When you’re looking to level up your recording studio, reach for the Mackie Big Knob Studio+. With a built-in 192kHz / 24-bit recording interface, dual Mackie Onyx preamps and flexible talkback options, the Mackie Big Knob Studio+ is an all-in-one desktop interface and monitor control solution that’ll supercharge your workflow with industry-leading Mackie performance.

Mackie BIG KNOB STUDIO PLUS Monitor Controller Interface Key Features:

• Professional source and monitor selection
• Choose between 3 sources and 2 monitor pairs
• Classic Big Knob volume control
• Independent trim on all sources and monitor outs
• Mono, mute and dim functions
• Flexible 2x2 USB recording interface
• Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
• High-resolution 192kHz / 24-bit recording and playback
• Cue mix allows controlled blending of direct inputs with other signals for zero-latency recording
• Choice of recording paths provide flexibility for applications like podcasting
• Comprehensive feature set for professional studios

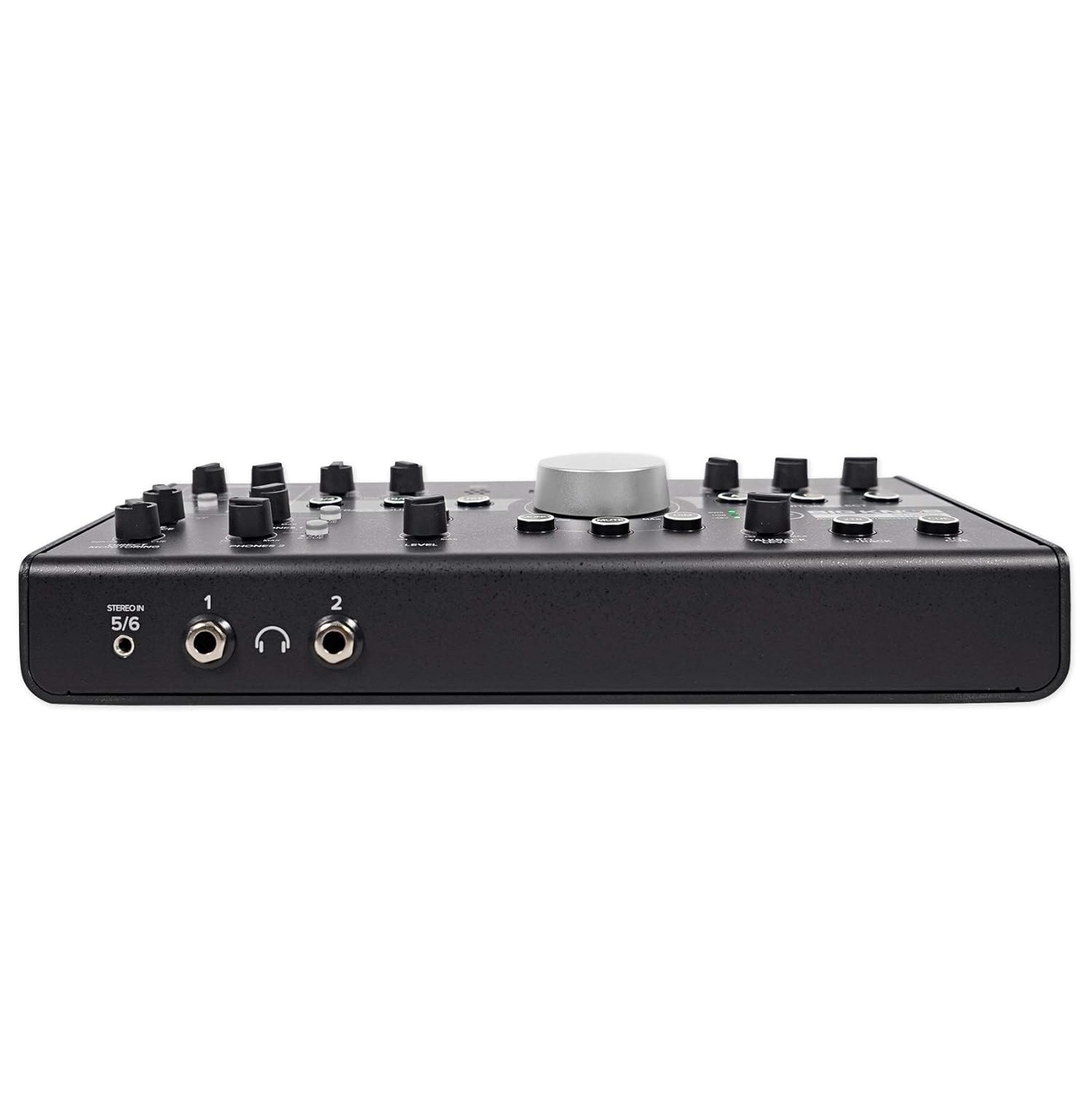

• Flexible source connections including convenient front panel 1/8” input for your smartphone
• Dual headphone outs with independent level control
• Built-in talkback mic for easy communication with artists
• 16-segment high-resolution input source metering
• Sturdy “Built-Like-A-Tank” design
• Compatible with all major DAWs on both Mac and Windows
• Includes Waveform OEM recording software

Mackie BIG KNOB STUDIO PLUS Monitor Controller Interface Specs:

• Input Channels: 4 x sources
• Output Channels: 3 x stereo monitors
• Analog Inputs: 4 x 1/4″ TRS (line), 2 x XLR-1/4″ combo (mic), 2 x 1/4″ (cue), 1 x 1/8″ (aux in), 1 x XLR (external talkback)

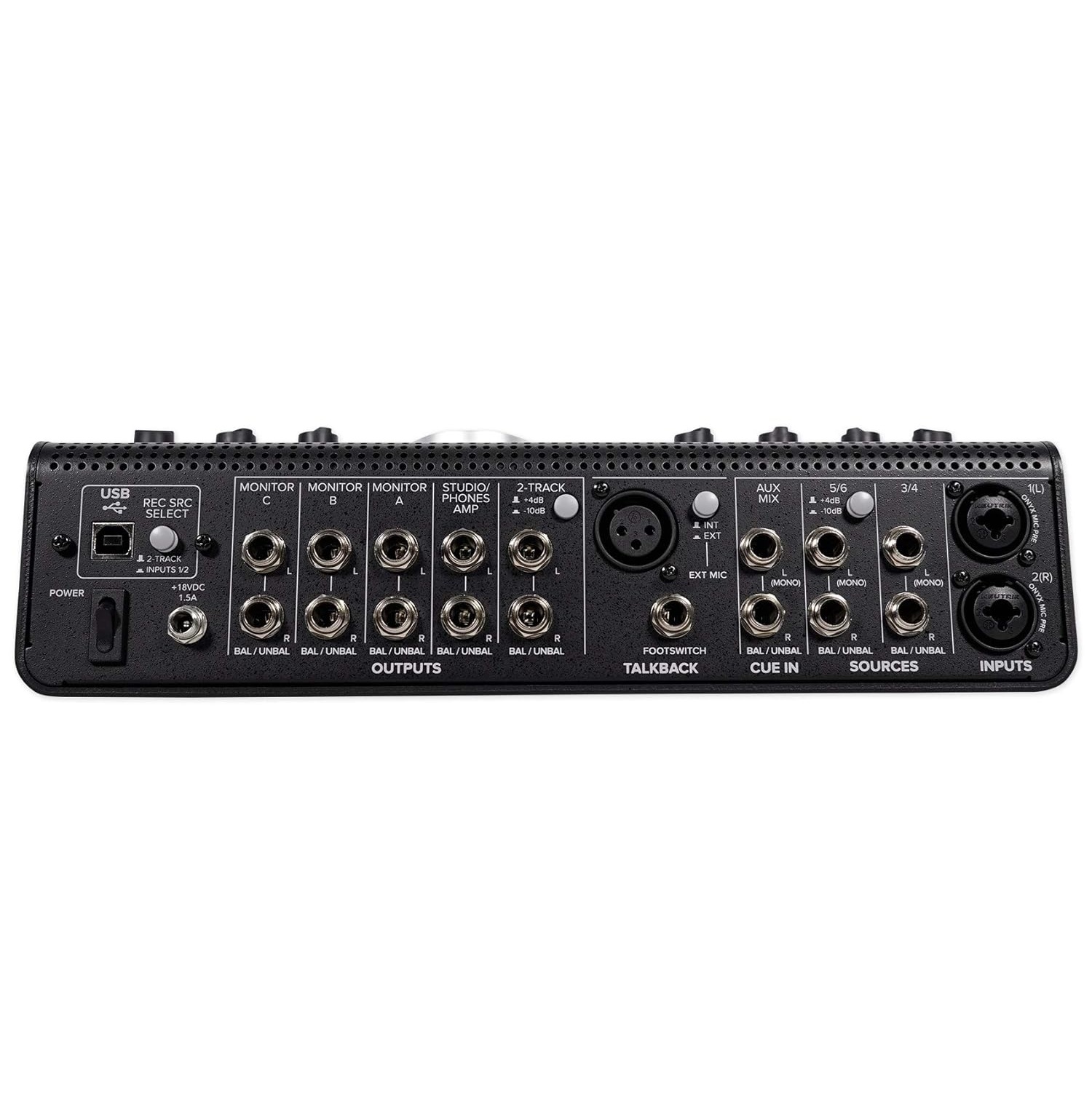

• Analog Outputs: 6 x 1/4″ (monitors A/B/C), 2 x 1/4″ (2-track), 2 x 1/4″ (studio/phones)
• Headphones: 2 x 1/4″
• USB: 1 x Type B
• Computer Connectivity: USB
• Talkback: Built-in
• A/D Resolution: 24-bit/192kHz
• Software: Traktion
• Compatibility: Mac, Windows
• Form Factor: Desktop
• Power Supply: 18V DC power supply (included)
• Height: 3.2″
• Width: 11.9″
• Depth: 6.8″
• Weight: 4.6 lbs.
