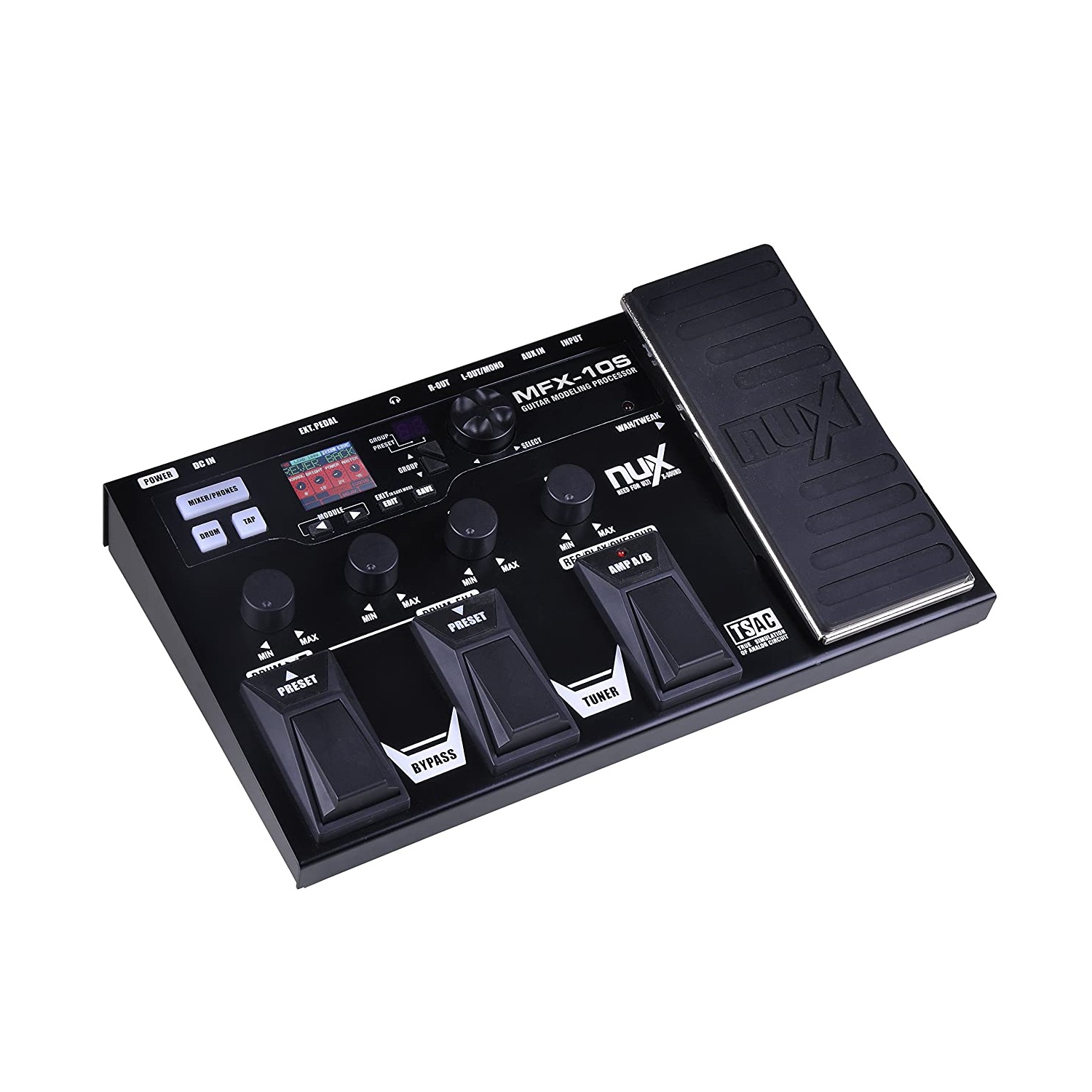

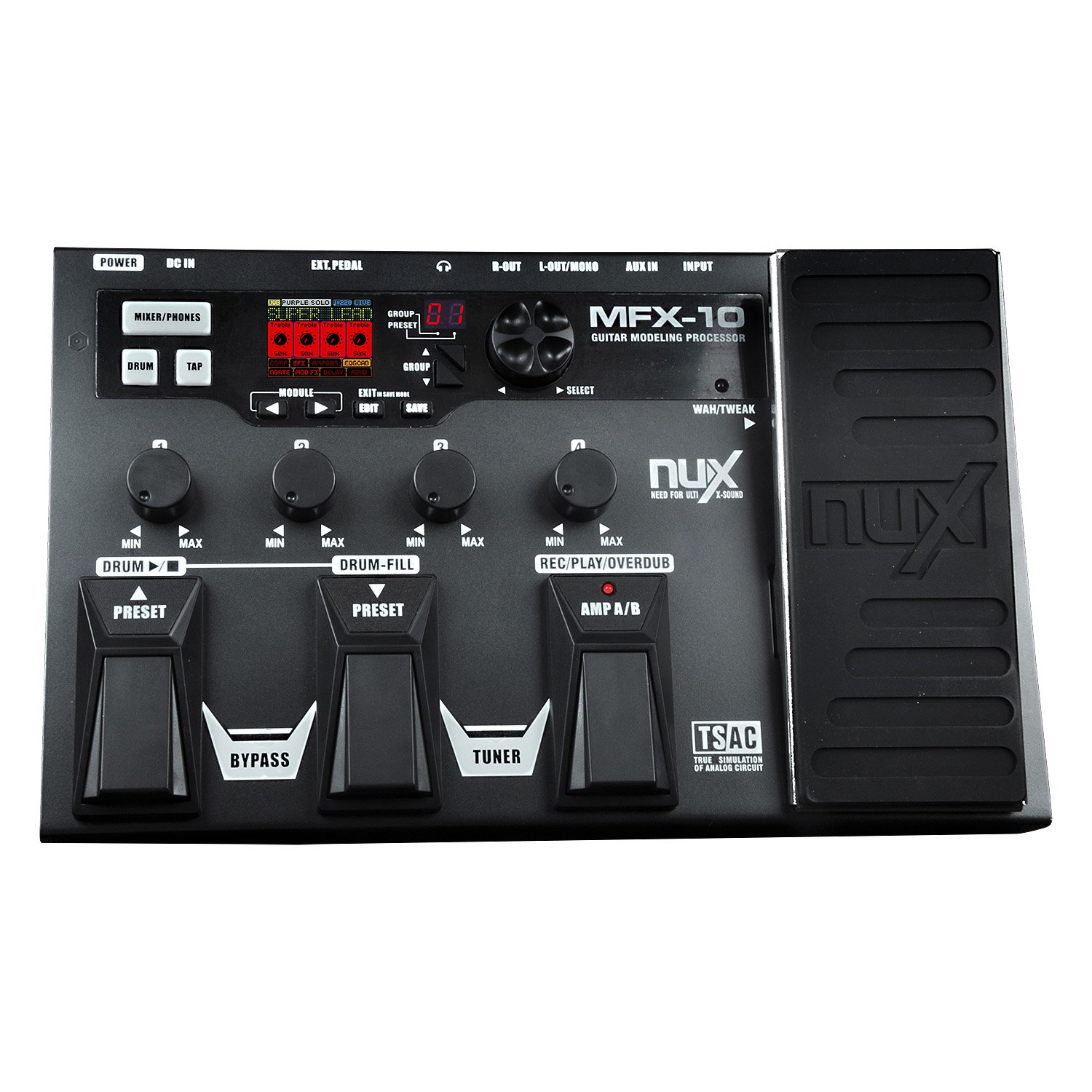

NuX MFX10 Multi-Effects Guitar Processor

Description

The MFX10 comes with a total of 55 models, up to nine can be used simultaneously. Multiple Guitar sound are available in one unit!

It includes:

•  19 classic amp and pedal models with A/B channel switching
•  Vintage 3-band passive EQ for every amp model
•  Parametric EQ with extra middle frequency sweep control for pedals
•  12 cabinet models provide two different modes for guitar amplifier or mixer/PA input
•  Built-in drum machine with CD quality PCM sounds
•  Up to 20 seconds phrase loop with sound on sound
•  The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
•  The expression pedal lets you adjust the volume or effects parameters in real time
•  Big backlit 160 x 128 TFT LCD for clear, easy viewing of the devices name, parameters, tuner display etc
•  A total of 72 presets: 36 factory + 36 user presets. The A/B switch allows you to use up to 144 presets
•  New generation 32-bit DSP, High Performance 24 Bit/ 48kHz AD/DA convertors
•  Latest TS/AC (True Simulation of Analog Circuits) Technology duplicates the distortion and tone shape of tube and vintage effect pedals
• **Includes power supply**

Model:- Nux MFX10

• Effects types: 55
• Effect modules: Max. 8 simultaneous modules
• Preset memory:
• User settings: 4 Presets (A-D) x 9 (1-9) groups = 36
• Factory setting : 4 Preset (A-D) x 9 (1-9) groups = 36
• Total 72 presets (up to 144 presets with AMP A/B switch)
• Sampling Frequency: 44.1kHz
• AD/DA converter: 24bit
• Signal processing: 32bit
• Frequency response: 20Hz-20,000Hz 1dB
• THD+N :< 0.01%
• Display: 160 x 128 TFT LCD

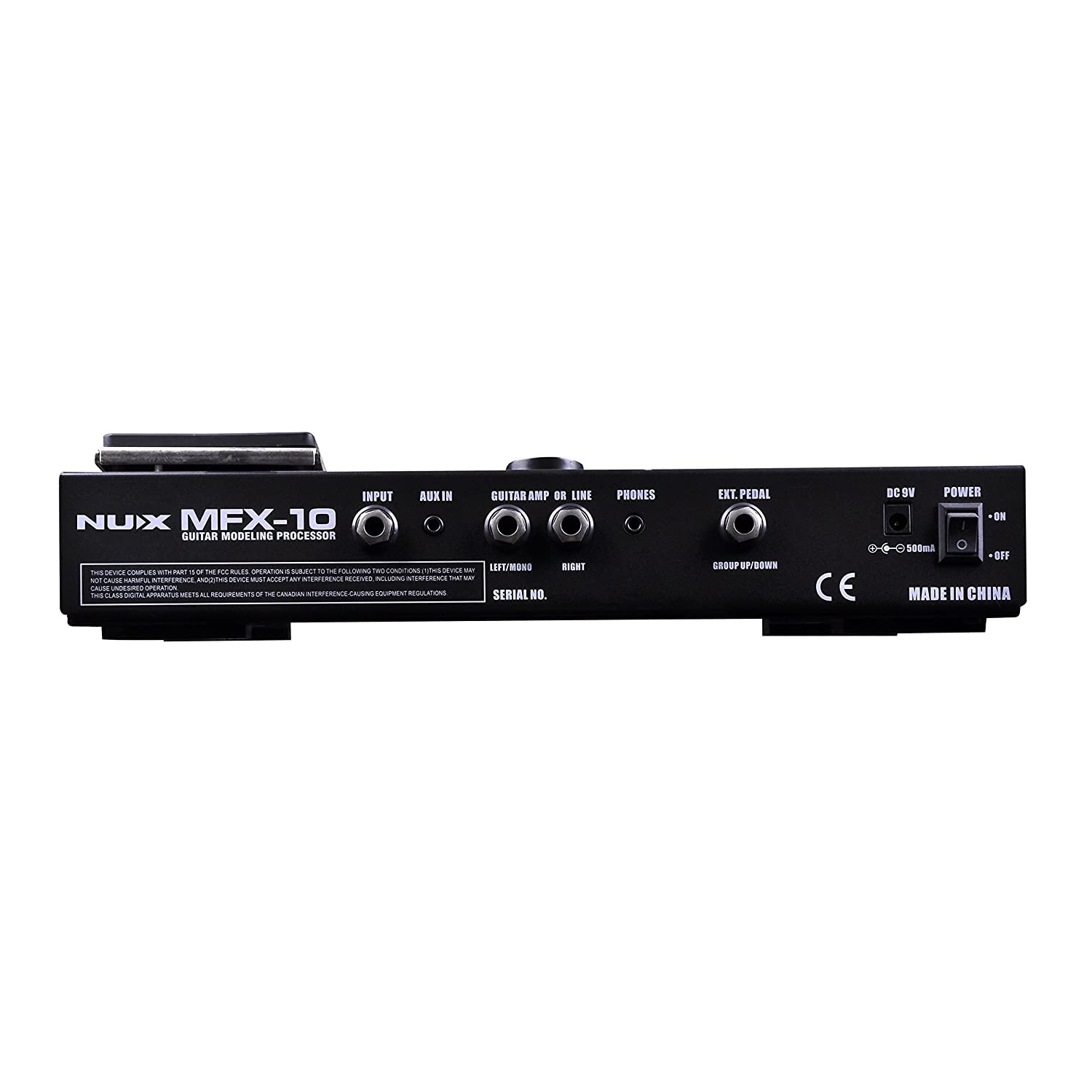

• Jacks: INPUT, LEFT(MONO), RIGHT, HEADPHONES, AUX IN, EXT.PEDAL, DC IN.
• Input -10dBv @ 3.3k
• Output: -10dBv (Output load impedance of 10k or more)
• AUX In: -10dBV @ 10k or more
• Headphones: 20mW + 20mW (into 32 load)
• Power: 9V DC, 500mA, ACD-007A (Negative pin)
• Dimensions: 330(L) 202(W) 72(H)mm
• Weight: 2.65kg
• Included Accessories: Owners Manual, Power Adaptor
