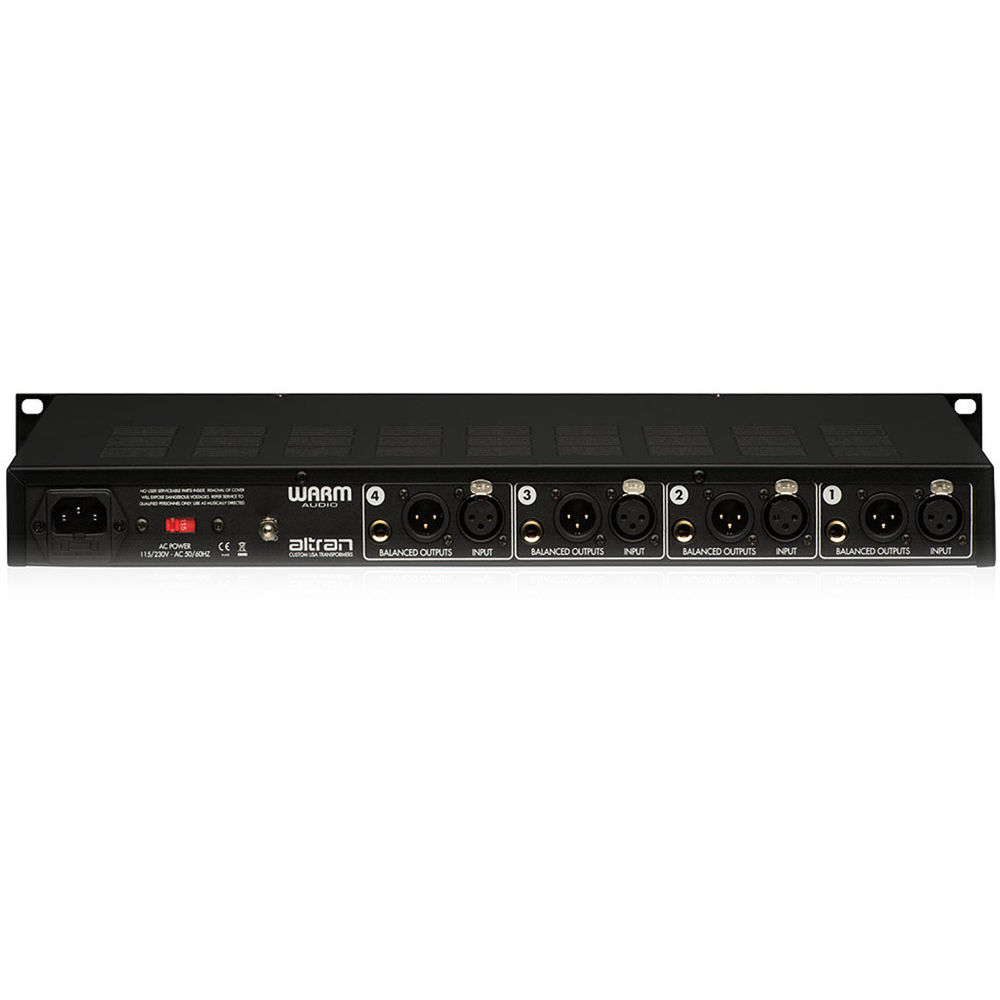

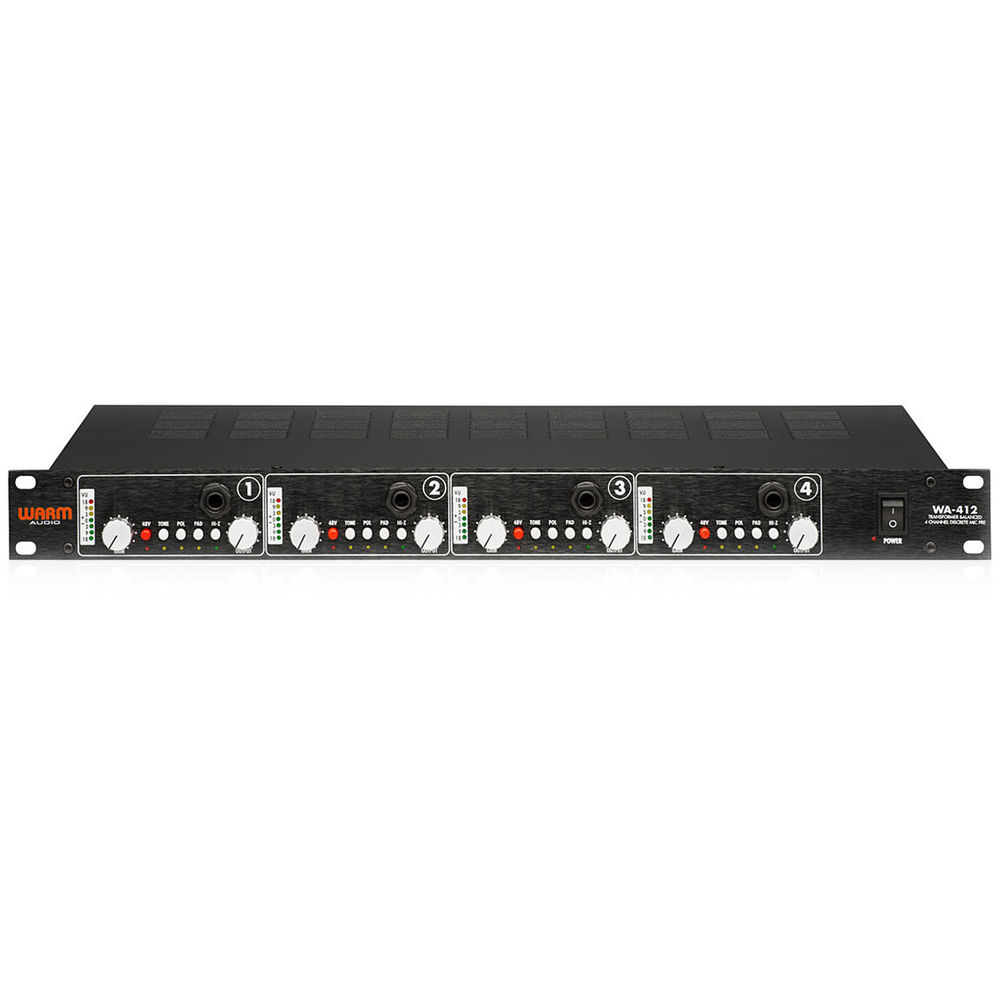

Warm Audio WA-412 4-Channel Microphone Pre-Amp with DI

Description

Warm worked closely with Altran to create unique transformers that extend the low frequency response of the design. These transformers also use a vintage winding technique that produces a distinct smooth and open character.

Carefully choosing the WA-412 components has resulted in an amazing four-channel ‘workhorse’ preamp/DI that performs at the highest levels, while still adding a touch of vintage console magic to your signal.

Features

• 4 Channel Microphone Preamplifier + Instrument DI
• Fully discrete, transformer coupled, through-hole component topology
• Altran USA custom-wound, premium input and output transformers
• X520 discrete op-amp in every channel, socketed for convenience
• User-replacable op-amps with most 6 pin, discrete op-amps
• 65 dB of gain
• Inputs - Microphone XLR and Active Instrument 2 mOhm HI-Z
• Outputs - Transformer balanced XLR and TRS
• Input impedance switches from 600 ohms to 150 ohms
• -20db pad - pads both mic and instrument DI inputs
• +48 volt phantom power
• LED metering
• Output trim knob for precise level control and tone sculpting
• Internal power supply (grounded, 3-pin IEC cord)
