The MX-A5200 offers 11 x discrete channels of amplification with flexible configuration options - delivering an impressive combination of power and quality. Enjoy the flexibility of a multi-zone system or immerse yourself in exhilarating surround sound using any combination of 11-channels..
As part of its uncompromising design, the MX-A5200 boasts a specially designed chassis to maximise rigidity and eliminate the effects of vibration. The MX-A5200 employs a double bottom construction consisting of vibration control plates made of 1.6 mm steel - echoing that of the legendary Z11 AV receiver. In order to support the heavy heat sinks and other components, a left-right independent construction strengthened by a rigid-frame structure is utilised. The bottom frame reduces the transmission of vibration produced by the large power supply transformer and heat sinks. The MX-A5200 also incorporates a heavy insulator that blocks external vibration.
To further enhance power capacity, the MX-A5200 supports Bridge Tied Load (BTL) configuration for the front 2 channels. This allows for a major improvement to the front speaker performance.

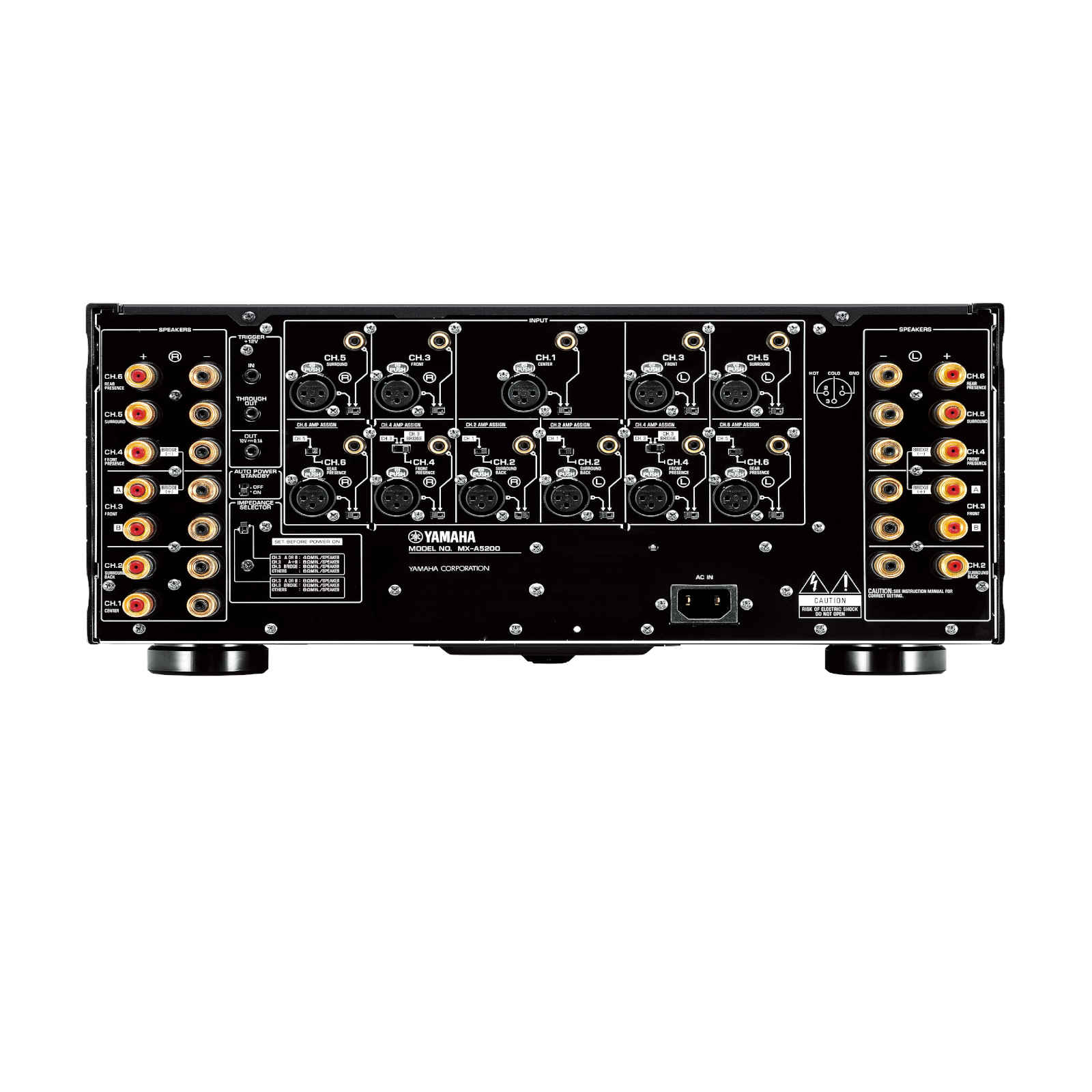

The rear of the MX-A52000 features high-quality, gold-plated terminals that are compatible with Y plugs (spade connectors) for optimal connections with speakers. Stabilising the chassis is the key to enhanced performance and deep, sinking sound. The MX-A5200 achieves this by employing a thick bottom plate which acts to steady the entire structure and achieve optimal sound.
The MX-A5200 utilises a high-output, large toroidal transformer combined with 2 specially developed high-capacity block capacitors to deliver massive power with generous headroom. Also, energy loss is minimised and ensures effortless reproduction of sound sources. In Addition to 11.2-channel output, 5-channel biamping and other configurations are possible.
When connecting AV components, electrical noise can be introduced - a result of the connections between them and also from other sources of external noise. To combat this inherent issue, the MX-A5200 utilizes balanced connections for all 11-channels - the same type found in professional audio applications. Additionally, the alternative RCA unbalanced connection uses a ground sensing transmission method that achieves simple balanced transmission.
