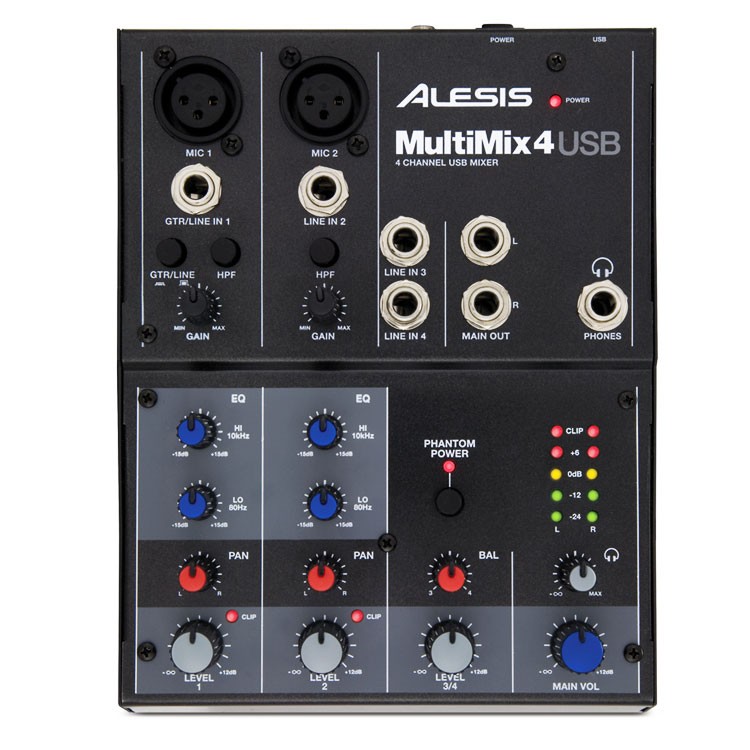

Alesis MultiMix 4 USB Four-Channel USB Mixer

Description

Alesis MultiMix 4 USB Four-Channel USB Mixer:

The Alesis MultiMix 4 USB is a compact 4-channel desktop mixer with a built in USB digital audio interface. This compact Alesis mixer is perfect for basic computer-recording setups, video editing, production studios, and portable podcasting. The MultiMix outputs not only line-level analog audio, but also stereo 16-bit, 44.1kHz digital audio over USB for low-noise, with easy computer connection.

The 4 input channels on the MultiMix 4 USB mixer all accept a 1/4" line input. You can can plug XLR microphones into channels 1 and 2, including condensers, thanks to the mixer's switchable 48V-phantom power supply. Plug a guitar or bass directly into channel 1's switchable high-impedance input. With incredible audio levels, it's a complete package.

The Alesis MultiuMix compact mixer's channels 1 and 2 offer switchable high-pass filtering at 75Hz to eliminate low-frequency rumble, handling and wind noise. Each channel has an independent pan control and channels 1 and 2 provide high and low-shelving EQs. Channels 1 and 2 have independent gain trims, while channels 3 and 4 are configured as a stereo pair at the level and pan controls.

Alesis MultiMix Specifications:

• MultiMix 4 USB Compact Mixer:
• Inputs:
• Line (CH 1, 2): 10 KÎ input impedance, 5.5mV 4.9V RMS sensitivity for max output
• Mic (CH 1, 2): 600 Î input impedance balanced, 700mV RMS sensitivity for max output
• Line (CH 3, 4): 700mV RMS sensitivity for max output
• HPF (CH 1, 2): 200Hz (-1dB), 80Hz (-3dB), 20Hz (-24dB)
• Outputs:
• Line: 7VRMS max
• Headphone: 0.5W into 47Π
• Signal-to-Noise Ratio:
• Line: >92dB (max output; JIS A-weighted)
• Mic: >62dB
• Distortion: < 0.02%
• Frequency response:
• Line: 20Hz-20kHz (± 0.5dB)
• Mic: 20Hz-15kHz (± 0.5dB)
• Channel Equaliser: Bass: ± 14dB @ 80Hz, Treble: ± 14dB @ 12kHz
• Channel Fader Kill: > 90dB @ 1kHz
• Crosstalk: >85dB @ 1kHz
• Interface: USB1.1 or higher (stereo in and stereo out)
• Power Adapter: 10V AC, 500 mA
• Weight: 1.5lb.
• Dimensions:(LxWxH): 7-3/4" x 6" x 2"
